Blank KF (QF) Stubs (304L SS)

Features

  • KF fittings are used for through or foreline vacuum plumbing and simple HV (10-8 Torr) chambers
  • Elastomeric o-ring limits the connection's temperature range and ultimate vacuum
  • 304L stainless steel fittings work in adverse temperatures and corrosive conditions
  • Aluminum or brass fittings work in more general applications

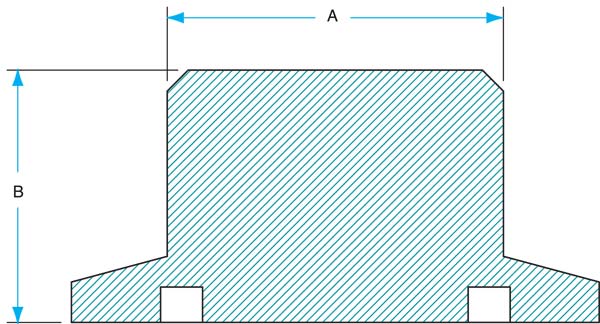

Flange Size Dim A Dim B Weight
kg
KF10 19.1 19.1 0.11
KF16 19.1 19.1 0.11
KF25 25.4 19.1 0.11
KF40 38.1 25.4 0.22
KF50 50.8 25.4 0.22
