FS Series 1/4"-1" Filter Silencers

Activair.cz > Products > Filtration > Inlet Filter Silencers > FS Series 1/4"-1" Filter Silencers
FS Series 1/4

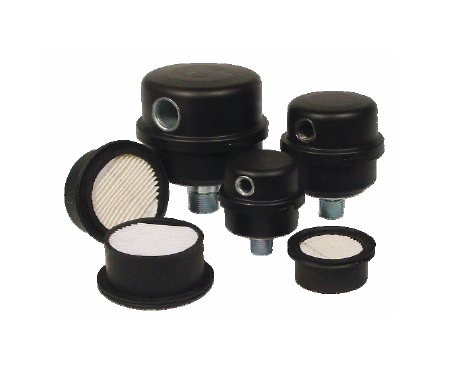

Small Compact Filter Silencers with Hockey Puck Filter Element.


Features

  • Fully drawn weatherhood - no welds to rust or vibrate apart
  • Tubular silencing design - tube maximizes attenuation and air flow while minimizing pressure drop
  • Durable carbon steel construction with powder coat finish
  • Ability to mount vertically, horizontally

Technical Specifications

  • Temp (continuous): min -26°C (-15°F) max 104°C (220°F)
  • Filter change out differential: 37-50 mbar over initial Δ P
  • Typical noise attenuation up to 15 dB's (due to the wide range of applications and machines these units are used on, a single graph is insufficient. Please inquire for your specific requirement)
  • 99%+ removal efficiency stdandard
    • Polyester to 25 micron
    • Paper to 2 micron

Options

  • Various media for different environments
  • Straight through configuration
  • Epoxy coated finishes
  • Special connections

Applications

  • Ash Handling
  • Blowers-Side Channel
  • Compressor-Screw
  • Hydraulic Breathers - fine filtration
  • Nailers/Staplers
  • Pneumatic Conveying Systems
  • Waste Water Aeration
  • Workshop
Assembly Part
Number

 MPT
Outlet		 Dimensions - mm Rating m3/h No. of Silencing Tubes Approx.
Weight
kg
Polyester Paper A B C Assembly Element
FS-05-025 FS-04-025 1/4" 70 16 64 7 14 1 0,11
FS-05-038 FS-04-038 3/8" 70 16 64 14 14 1 0,11
FS-07-038 FS-06-038 3/8" 90 16 83 14 20 1 0,23
FS-05-050 FS-04-050 1/2" 76 22 64 14 14 1 0,11
FS-07-050 FS-06-050 1/2" 97 22 83 20 20 1 0,23
FS-11-050 FS-10-050 1/2" 105 22 105 20 60 1 0,45
FS-07-075 FS-06-075 3/4" 106 32 83 20 20 1 0,23
FS-11-075 FS-10-075 3/4" 114 32 105 43 60 1 0,45
FS-11-100 FS-10-100 1" 114 32 105 60 60 1 0,45
