AIM-X

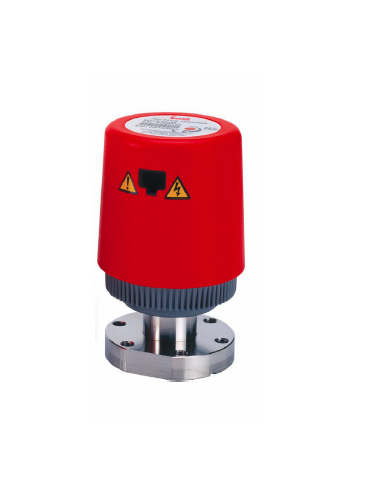

The Active Inverted Magnetron Gauges (AIM) combine the gauge-head and controller in one compact Active unit. These gauges have proved to be rugged and reliable in a wide range of applications ranging from scientific instruments to industrial processes.

This gauge features a linear output for easy integration with a computer or PLC.

Features and Benefits

  • Drive electronics combined in the gauge head which reduces the system cost and saves valuable rack space
  • Low output impedance and integral Faraday shield provides high level of noise immunity and permits long cable runs (up to 100 m)
  • Low magnetic field version - XL - for sensitive applications e.g. mass spectrometry and electron microscopy.
  • Interchangeable body tube allows for rapid tube replacement without pre-calibration
  • CSA, C/US approved
  • Wide-ranging, regulated, internal power supply which runs from standard d.c. power supplies of +13.5 to +36 V with a good tolerance to voltage fluctuations
  • Standard analog output of 0 to +10 V d.c. and gauge identifier allowing easy interface with a computer or plc and fault output indication
  • Electrode service kit allows user cleaning and maintenance
  • The Unique striker design ensures rapid striking even at high vacuum or in contaminating conditions
  • Extended pressure range

Applications

  • All vacuum applications requiring rugged and reliable pressure indication in the range 1 x 10-2 to 1 x 10-9 mbar. Typical processes range from general vacuum through industrial coaters and furnaces to scientific instruments and semicon.
Technical data
Pressure Range
  AIM-X 10-2 to 10-9 mbar
Accuracy* Typically ±30%
Maximum overpressure 10 bar absolute (145 psi)
  Power supply +13.5 to +36 V DC (max 1 V ripple)
  Power consumption 2 W Maximum
  Output signal 2 to 10 V DC
Set point Open collector transistor
  Maximum voltage 40V DC
  Current 100 mA max
Temperature range
  Operating +5 to +60°C
  Storage 0 to +70°C
Materials exposed to vacuum
  NW25 versions Stainless steel 304 & 306 & 347, fluoroelastomer, glass
Internal volume 26 cm3
Weight 0.81 kg
External interface connector 8-way FCC68/RJ45 socket
Vacuum fitting NW25
Standards
  Electromagnetic compatibility EN 61326
  (Class B Emissions)
  Enclosure rating IP40


*Accuracy is reduced at the limits of the measuring range
