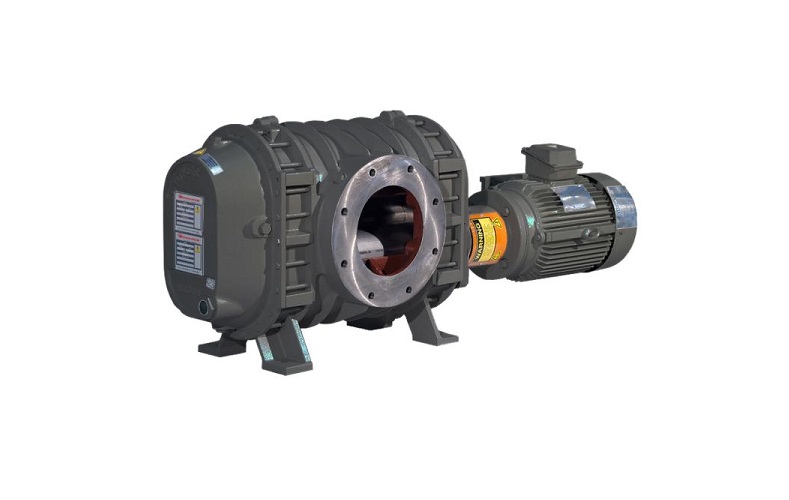

615 5VR CE 11kW
Activair.cz > Products > Vacuum pumps and vacuum stations > Mechanical Boosters > Stokes 6" > 615 5VR CE 11kW
Process Isolation Boosters are designed to be used in conjunction with rotary-piston, liquid ring, rotary vane and dry vacuum pumps to increase pumping speed at working pressures and shorten pump down time significantly. The Process Isolation Boosters can be mounted separately or on the inlet of the backing pump to create a compact integrated package.
Features and Benefits
- 5 Mechanical shaft seals offer improved life and serviceability and prevent contamination from dust and particulates
- Ringfeder® keyless gear locking system provides stronger, faster timing
- Drive end roller bearing which resists belt pull and thermal effects
- Over-sized anti-friction bearings allows increased uptime and longer service intervals
- Vertical gas flow configuration
- Direct drive capability
- Rugged proven design and construction
- Large shaft diameters allowing improved performance at high pressures
- Quiet operation
- Unique impeller design which is dynamically balanced to minimize vibration
- High volumetric efficiency
- High differential pressure offering operation capability
Applications
- Automotive
- Chemical processing
- Heat treatment
- Leak detection
- Metallurgy
- PET processing
- Pharmaceuticals
- Thermal processing
- Transformer drying and cable fluid conditioning
- Vacuum coating
- Vacuum melting
- Many other industrial applications
| Technical data | Horizontal flow | Vertical flow |
| Displacement V belt (2750 rpm) | 3375m3h-1 / 2000ft3min-1 | 3375m3h-1 / 2000ft3min-1 |
| Displacement direct drive (3600 rpm) | 4420m3h-1 / 2600ft3min-1 | 4420m3h-1 / 2600ft3min-1 |
| Inlet/outlet flanges | 8” ASA/ANSI flange | 8” ASA/ANSI flange |
| Motor option US TEFC | 15hp | 15hp |
| Cooling water | 7.6-11.4 l min-1 / 2-3 gal min-1 | 7.6-11.4 l min-1 / 2-3 gal min-1 |
| Oil capacity | 1.9liter / 0.51gal | 4.1liter / 1.1gal |
| Max pressure differential | 506mbar / 380Torr | 506mbar / 380Torr |
| Max temp rise | 135°C / 275°F | 135°C / 275°F |
| Max discharge temp | 191°C / 375°F | 191°C / 375°F |
| Foot print TEFC direct drive (L x W x H) | 1369 x 406 x 543mm / 53.9x 16 x 21.4in | 1369 x 543 x 406mm / 53.9 x 21.4 x 16in |
| Weight TEFC direct drive | 397kg / 875lbs | 397kg / 875lbs |
