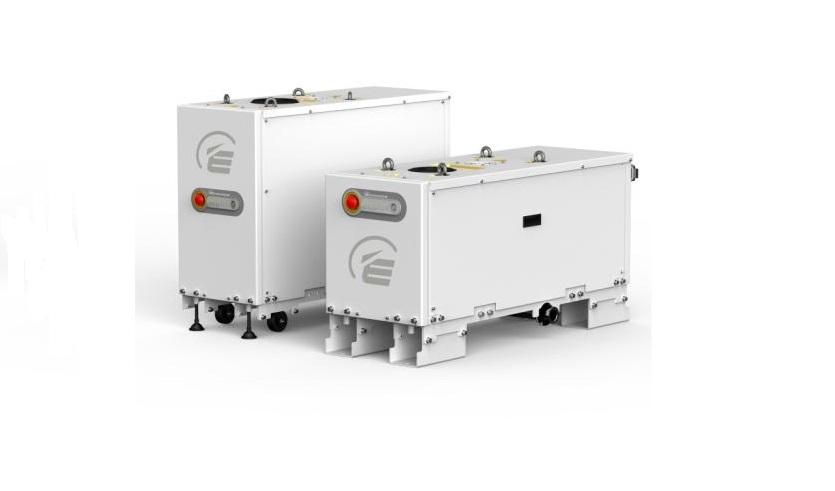

GXS750F - GXS Dry Pumps
The GXS industrial dry screw pump incorporates innovative, patented design features that establish a new standard in dry pumping.

Features and Benefits

  • Designed for high reliability
  • Adaptable to a wide range of applications
  • Long service interval and easy swap-out
  • Low cost of ownership
  • Minimum workplace and environmental impact
  • Simple to install and operate
  • Ideal for integration into larger systems

Applications

  • Solar
  • Freeze drying
  • Sterilisation
  • Coating
  • Metallurgy
  • Leak detection
  • Food packaging
  • Vacuum chamber evacuation
  • High purity gas cylinder filling
Technical data
Peak Pumping Speed 740 m3h-1 (436 cfm)
Ultimate Pressure 8 x 10-3 mbar (6 x 10-3 Torr)
Full Load Power
@ ultimate pressure 10 kW (13.4 hp)
@ peak pumping load 37 kW (49.6 hp)
Inlet connection ISO100
Exhaust connection NW50
Mass 640 Kg (1411 lb)
Lubrication volume 2.4 l (0.6 gal)
