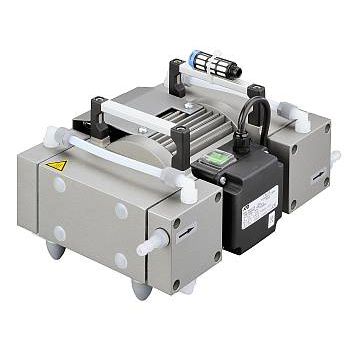

MP 101 V, 230V 50/60Hz
Activair.cz > Products > Vacuum pumps and vacuum stations > Diaphragm Pumps > MP (physical applications) > MP (ultimate pressure less than 1 mbar) > MP 101 V, 230V 50/60Hz
Four-stage diaphragm pumps.
| Technical data | |
| Pumping speed 50/60 Hz (l/min) | 16,7 / 18 |
| Pumping speed 50/60 Hz (m3/h) | 1 / 1,1 |
| Ultimate total pressure DIN 28432 (mbar) | <1 |
| Dimensions (W/D/H) | 200/260/150 |
| Weight (kg) | 10,3 |
