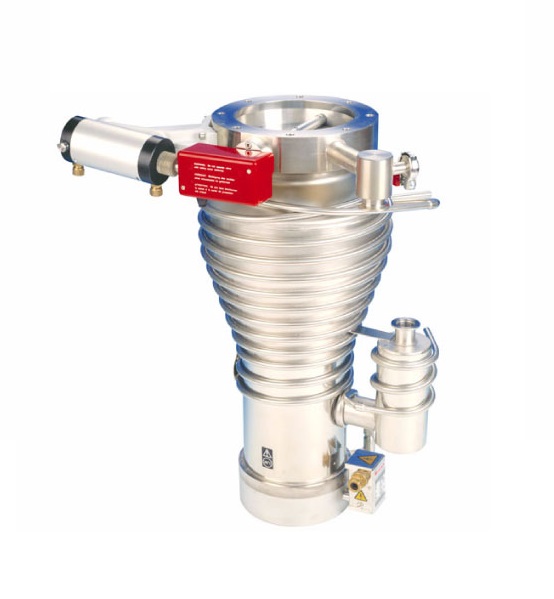

Diffstak 160/700M
Activair.cz > Products > Vacuum pumps and vacuum stations > Diffusion Pumps > Diffstak Vapour Pumps > Diffstak 160/700M
| Technical data | |
| Pumping speed | |
| nitrogen | 700 l s-1 |
| hydrogen | 1300 l s-1 |
| Min backing pump displacement* | 12 m3h-1 |
| Recommended backing pump | RV12 or E2M18 |
| Recommended fluid | Santovac® 5 |
| Fluid charge (dry) | 255 ml |
| Inlet connection compatible with | ISO160 |
| Backing connection | NW25 |
| Cooling water connection | 10 mm compression fittings |
| Heater power | 1.35 kW |
| Min cooling-water flow at 20°C | 115 l h-1 |
| Pneumatic connections† | 6mm coupling x ¼ BSP male stud |
| Pneumatic actuating pressure | |
| Minimum | 2.4bar / 35psi |
| Maximum | 6.9bar / 100psi |
| Weight | |
| 160/700M | 26kg |
| 160/300P | 27kg |
* For maximum throughput
† 160/700P only
