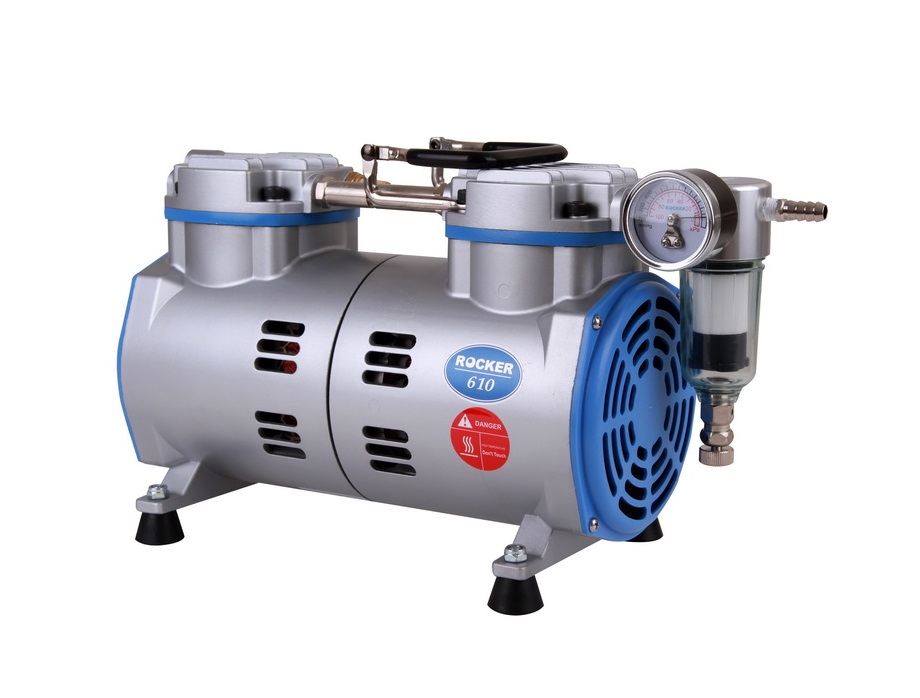

Rocker 610

Rocker series vacuum pump is a piston-powered, oil-free pump. With innovative electronic, mechanical technology and human design concept make Rocker's family quiet and low vibration, compact and light weight, clean and maintenance free, safe and comfortable.

Features

  • No air pollution, maintenance free
  • Prote™ overflow protection
  • Thermal protection device
  • International safety certification: CE certification, CSA certification

Applications

  • Filtration for microbiology test
  • Air sampling
  • Suspended solid test
  • Vacuum filtration

Specification (110V, 60Hz)

  • Max. power: 190 W
  • Max current: 1,7 A
  • Max. vacuum: 730 mmHg
  • Max. flow rate: 41 l/min
  • Motor rotation: 1700 RPM
  • Horse power: 1/4 HP
  • Noise level: 62.0 dB
  • Hose barb: 5/16 inch (8 mm)
  • Net weight: 7,6 kg
  • Dimension (L x W x H): 34,1 x 17,6 x 19,4 cm

Specification (220V, 50Hz)

  • Max. power: 180 W
  • Max. current: 1,0 A
  • Max. vacuum: 730 mmHg
  • Max. flow rate: 36 l/min
  • Motor rotation: 1450 RPM
  • Horse power: 1/4 HP
  • Noise level: 62.0 dB
  • Hose barb: 5/16 inch (8 mm)
  • Net weight: 7,6 kg
  • Dimension (L x W x H): 34,1 x 17,6 x 19,4 cm
