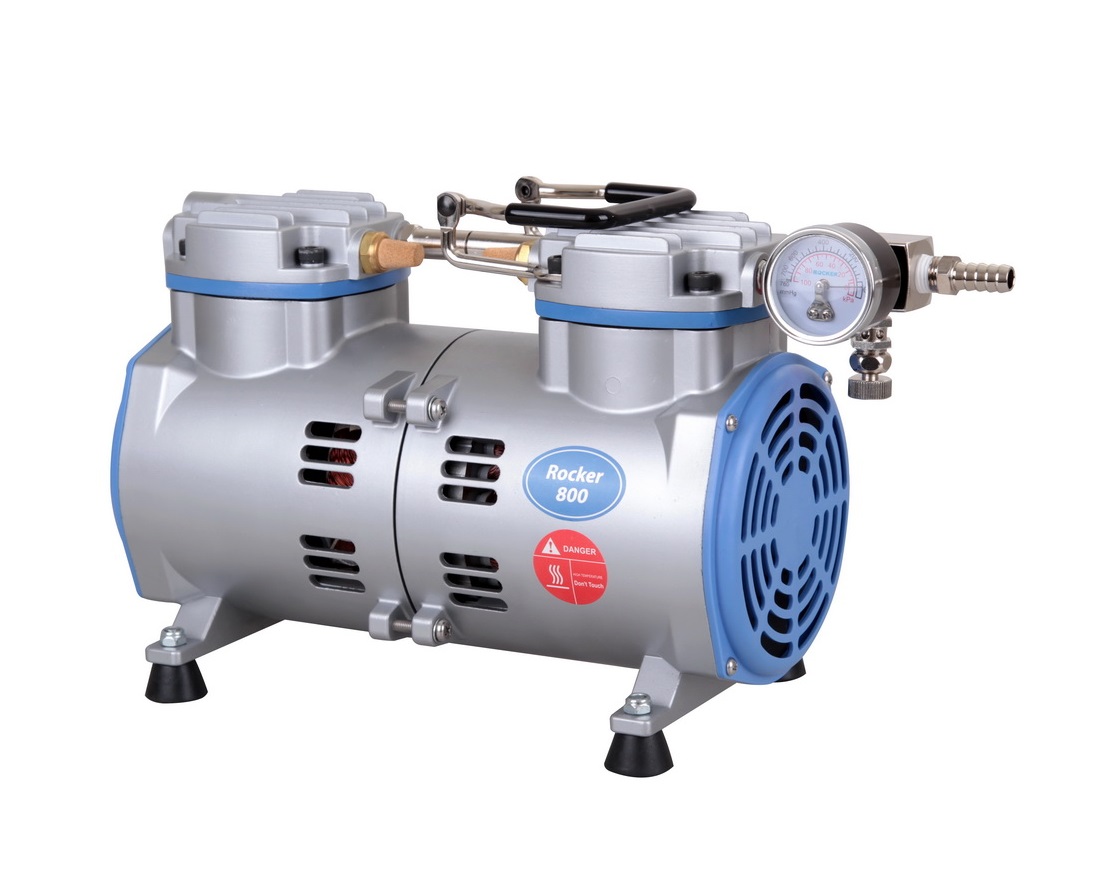

Rocker 800

Rocker series vacuum pump is a piston-powered, oil-free pump. With innovative electronic, mechanical technology and human design concept make Rocker's family quiet and low vibration, compact and light weight, clean and maintenance free, safe and comfortable.

Features

  • No air pollution, maintenance free
  • Vacuum regulator
  • Thermal protection device
  • International safety certification: CE certification, CSA certification

Applications

  • Vacuum drying
  • Vacuum oven
  • High volume degas
  • High volume vacuum filtration
  • Filtration for microbiology test
  • Air sampling
  • Suspended solid test

Specification (110V, 60Hz)

  • Max. power: 220 W
  • Max current: 2,0 A
  • Max. vacuum: -670 mmHg
  • Max. flow rate: 100 l/min
  • Vacuum regulator: yes
  • Overflow protection: yes
  • Motor rotation: 1750 RPM
  • Horse power: 1/3 HP
  • Noise level: 68.0 dB
  • Hose barb: 3/8 inch (8 mm)
  • Net weight: 7,6 kg
  • Dimension (L x W x H): 34,5 x 17,5 x 20 cm

Specification (220V, 50Hz)

  • Max. power: 220 W
  • Max. current: 0,9 A
  • Max. vacuum: -670 mmHg
  • Max. flow rate: 80 l/min
  • Vacuum regulator: Yes
  • Overflow protection: No
  • Motor rotation: 1450 RPM
  • Horse power: 1/3 HP
  • Noise level: 68.0 dB
  • Hose barb: 3/8 inch (8 mm)
  • Net weight: 7,6 kg
  • Dimension (L x W x H): 34,5 x 17,5 x 20 cm
