607 5VR

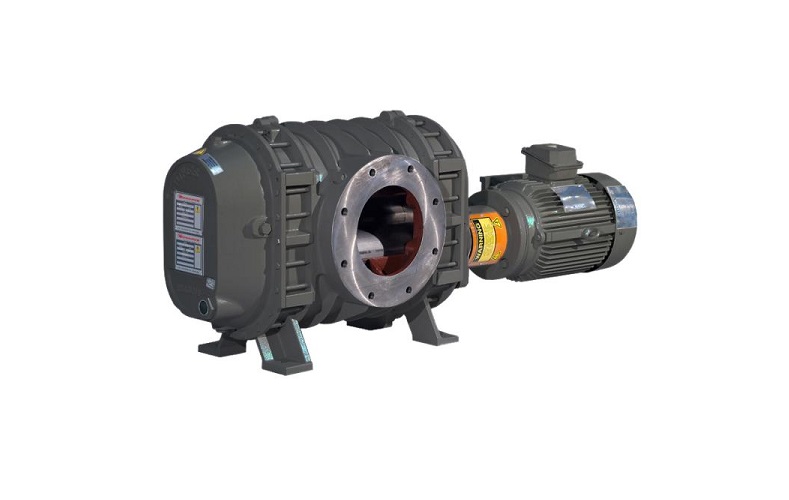

Process Isolation Boosters are designed to be used in conjunction with rotary-piston, liquid ring, rotary vane and dry vacuum pumps to increase pumping speed at working pressures and shorten pump down time significantly. The Process Isolation Boosters can be mounted separately or on the inlet of the backing pump to create a compact integrated package.

Features and Benefits

  • 5 Mechanical shaft seals offer improved life and serviceability and prevent contamination from dust and particulates
  • Ringfeder® keyless gear locking system provides stronger, faster timing
  • Drive end roller bearing which resists belt pull and thermal effects
  • Over-sized anti-friction bearings allows increased uptime and longer service intervals
  • Vertical gas flow configuration
  • Direct drive capability
  • Rugged proven design and construction
  • Large shaft diameters allowing improved performance at high pressures
  • Quiet operation
  • Unique impeller design which is dynamically balanced to minimize vibration
  • High volumetric efficiency
  • High differential pressure offering operation capability

Applications

  • Automotive
  • Chemical processing
  • Heat treatment
  • Leak detection
  • Metallurgy
  • PET processing
  • Pharmaceuticals
  • Thermal processing
  • Transformer drying and cable fluid conditioning
  • Vacuum coating
  • Vacuum melting
  • Many other industrial applications
Technical data Horizontal flow Vertical flow
Displacement V belt (2750 rpm) 1615m3h-1 / 950ft3min-1 1615m3h-1 / 950ft3min-1
Displacement direct drive (3600 rpm) 2040m3h-1 / 1200ft3min-1 2040m3h-1 / 1200ft3min-1
Inlet/outlet flanges 6” ASA/ANSI flange 6” ASA/ANSI flange
Motor option US TEFC 10hp 10hp
Cooling water 7.6-11.4l min-1 / 2-3gal min-1 7.6-11.4l min-1 / 2-3gal min-1
Oil capacity 1.9liter / 0.51gal 4. liter / 1.1gal
Max pressure differential 506 mbar / 380 Torr 506 mbar / 380 Torr
Max temp rise 135°C / 275°F 135°C / 275°F
Max discharge temp 191°C / 375°F 191°C / 375°F
Foot print TEFC direct drive (L x W x H) 1087 x 406 x 502mm / 42.8 x 16 x 19.8in 1087 x 502 x 406mm / 42.8 x 19.8 x 16in
Weight TEFC direct drive 345kg / 760lbs 345kg / 760lbs
