4 channels, 1200-5e-10 mbar, for Smartline transducers and Analogline transducers with 0-10 V output, USB interface and RS232 interface

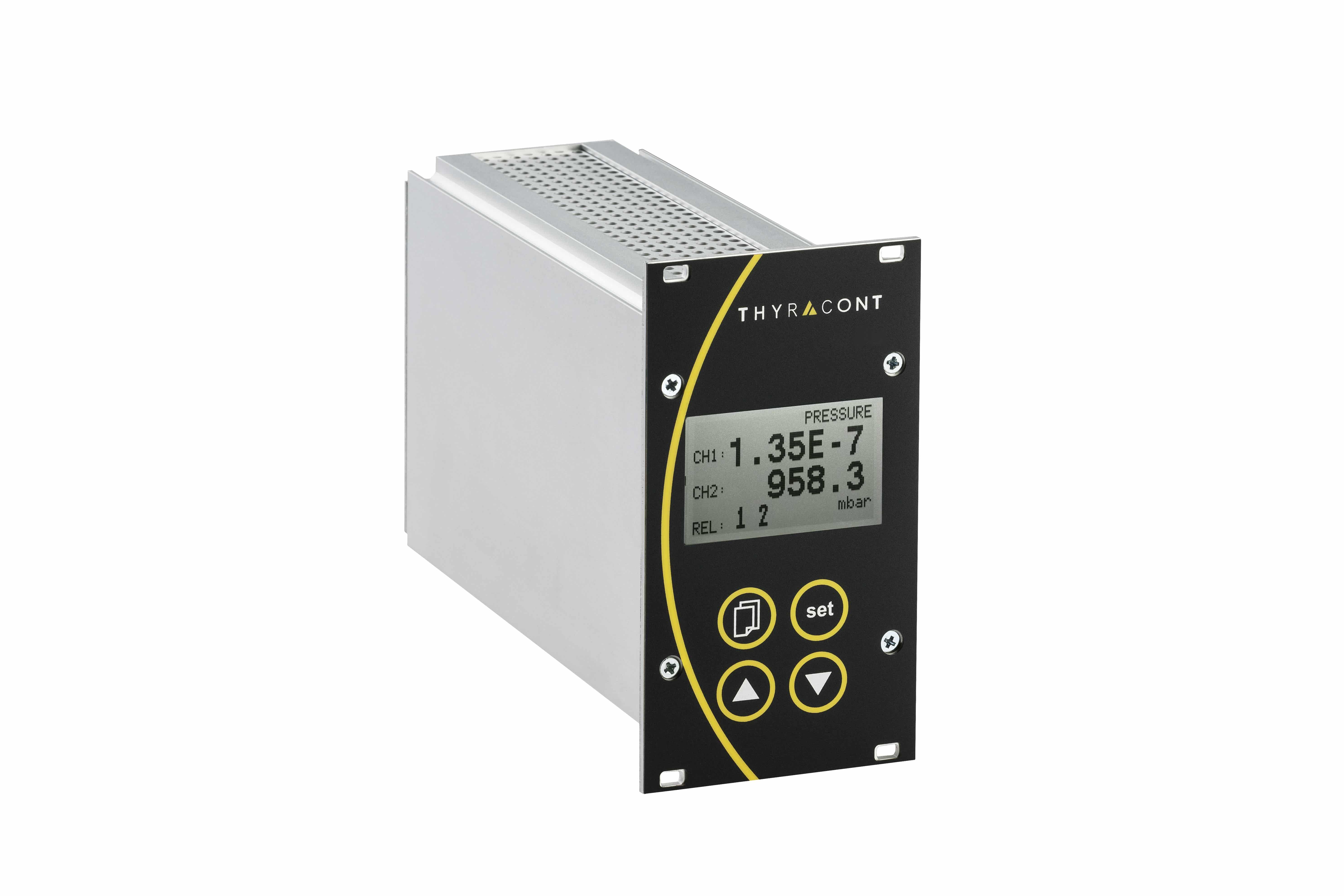

VD14S4

The VD14 4 channel controller is an intelligent control unit for applications in apparatus and plant engineering or special equipment construction.
19inch cassette 14 HP x 3 RE

Operating temperature +5…+50 °C
Storage temperature -20…+60 °C
Voltage supply 95 – 265 VAC, 50/60 Hz
Display LCD graphic display, 51×31 mm, background illumination, resolution 128×64,
Dimensions 25 × 18 × 16 cm
Protection class IP20
Weight (kg) 750g
Power consumption max. 45 W inclusive of transducer
Serial interface Mini-USB socket, Type B, 5pin (Virtual Com Port), RS232: 3.5 mm jack, 3-pole
Switching output 2 x relay, change-over type, SP assignable (VD14S4: 2×2) Phoenix strip terminal 6-pin (VD14S4: 2x) lifetime > 300,000 cycles, 4 A / 250 VAC, 2 A / 45 VDC
Suitable vacuum gauge All Smartline transducers
Scanning Rate RS485: 6,25 Hz (160 ms)
Messeingänge 1 x RS485, SubD, 15pin, male, for Smartline
Category Vacuum controller
Serial interfaces RS232, USB
