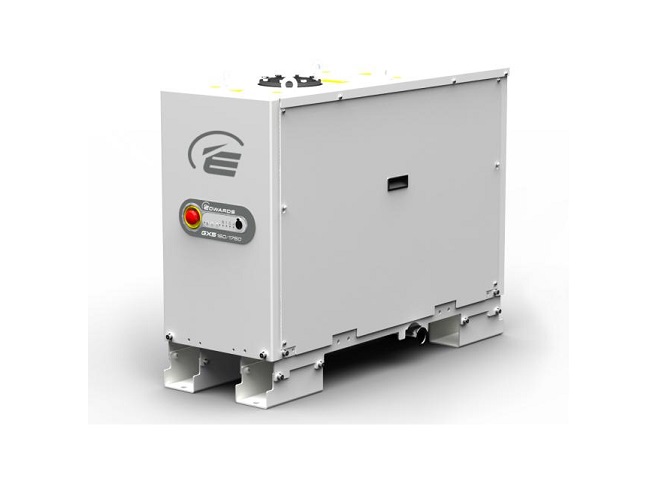

GXS160 - GXS Dry Pumps
The GXS industrial dry screw pump incorporates innovative, patented design features that establish a new standard in dry pumping.

Features and Benefits

  • Designed for high reliability
  • Adaptable to a wide range of applications
  • Long service interval and easy swap-out
  • Low cost of ownership
  • Minimum workplace and environmental impact
  • Simple to install and operate
  • Ideal for integration into larger systems

Applications

  • Solar
  • Freeze drying
  • Sterilisation
  • Coating
  • Metallurgy
  • Leak detection
  • Food packaging
  • Vacuum chamber evacuation
  • High purity gas cylinder filling
Technical data
Peak Pumping Speed 160 m3h-1
Ultimate Pressure with Purge 1.2 x 10-2 mbar
Ultimate Pressure without Purge 7 x 10-3 mbar
Full Load Power
@ ultimate pressure 3.8 kW (5.1 hp)
@ peak pumping load 5 kW (6.7 hp)
Inlet connection  ISO63
Exhaust connection NW40
Temperature 5-40 °C (41-104 °F)
Mass 305 Kg (672 lb)
Volume 0.7 l (0.2 gal)
