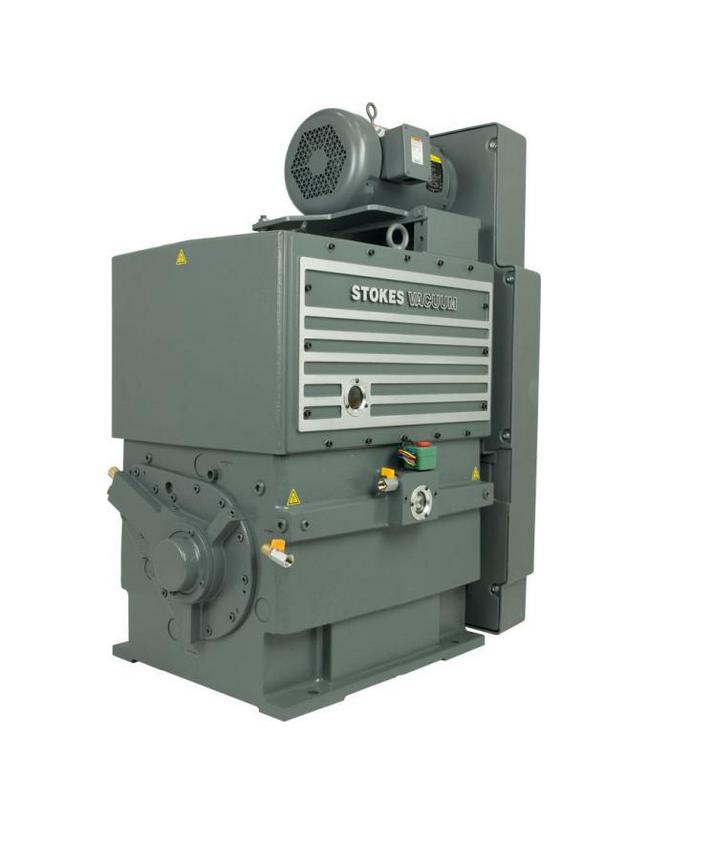

Stokes 1738HD

Each Stokes1700 series mechanical booster pump combination includes a Stokes Microvac backing pump and a belt driven, horizontal flow, high vacuum Stokes 6” series mechanical booster pump. In harsh applications where chemical or particulate contamination is present, process isolation boosters are available as an option. Controls for Stokes 1700 series mechanical booster pump combination include a pressure switch, motor starters, overloads, remote booster selection switch and lights for pump running and fault indication.

Features and Benefits

  • High capacity pumping combinations.
  • Proven oil sealed Microvac oil sealed piston pumps with high capacity direct drive 6” Stokes series mechanical booster pumps.
  • Flexible platform design.
  • Process isolation mechanical booster pump flexibility.
  • Harsh duty compatibility robust proven design.
  • Standard controls for the 1700 series high capacity mechanical booster pump combinations include a pressure switch, motor starters, overloads and lights for pump running and fault indication.
Technical data
Booster displacement 3398 m3h-1 / 2000 ft3min-1
Booster speed 2750 rpm
Booster orientation Horizontal
Pump displacement 1240 m3h-1 / 730 ft3min-1
Pressure switch required Yes
Normal cut-in pressure 53 mbar / 40 Torr
Continuous operation pressure limit 16 mbar / 12 Torr
Booster drive 11 kW / 15 hp
Pump drive (TEFC) 22.5 kW / 30 hp
Inlet connections 8 inch ASA/ANSI flange
Discharge connections 5 inch NPT
Water inlet/outlet connection 1 inch NPT
Recommended cooling flow @ 30ºC/85ºF 18.9 lmin-1 / 5 galmin-1
Booster oil capacity (V lube H) 1.9 litre / 0.51 US gal
Microvac oil capacity (V lube F) 76 litre / 20 US gal
Weight 3187 kg / 7025 lbs
