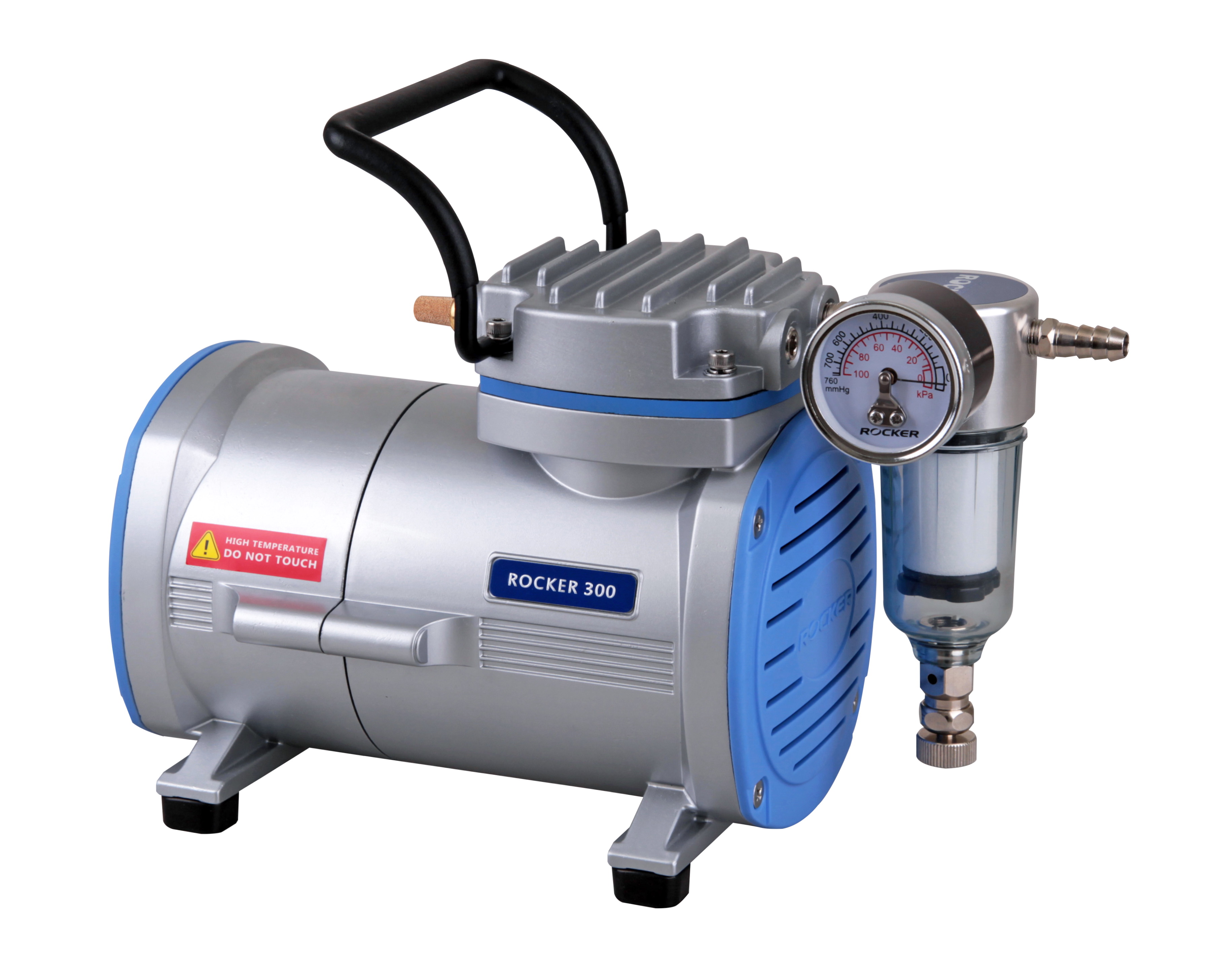

Rocker 300

Rocker series vacuum pump is a piston-powered, oil-free pump. With innovative electronic, mechanical technology and human design concept make Rocker's family quiet and low vibration, compact and light weight, clean and maintenance free, safe and comfortable.

Features

  • No air pollution, maintenance free
  • Prote™ overflow protection
  • Moisture trap with filter cartridge
  • Vacuum regulator
  • Thermal protection device
  • International safety certification: CE certification, CSA certification, IP 30 protection class, ROHS certification

Applications

  • Filtration for microbiology test
  • Air sampling
  • Suspended solid test
  • Vacuum filtration

Specification (110V, 60Hz)

  • Max. power: 65 W
  • Max current: 0,7 A
  • Max. vacuum: -680 mmHg
  • Max. flow rate: 23 l/min
  • Moisture trap: yes
  • Vacuum regulator: yes
  • Overflow protection: yes
  • Motor rotation: 1750 RPM
  • Horse power: 1/8 HP
  • Noise level: 50.0 dB
  • Hose barb: 5/16 inch (8 mm)
  • Net weight: 4,1 kg
  • Dimension (L x W x H): 26,8 x 13,5 x 20,4 cm

Specification (220V, 50Hz)

  • Max. power: 60W
  • Max. current: 0,3A
  • Max. vacuum: -680 mmHg
  • Max. flow rate: 20 l/min
  • Moisture trap: yes
  • Vacuum regulator: yes
  • Overflow protection: yes
  • Motor rotation: 1450 RPM
  • Horse power: 1/8 HP
  • Noise level: 50.0 dB
  • Hose barb: 5/16 inch (8 mm)
  • Net weight: 4,1 kg
  • Dimension (L x W x H): 26,8 x 13,5 x 20,4 cm
