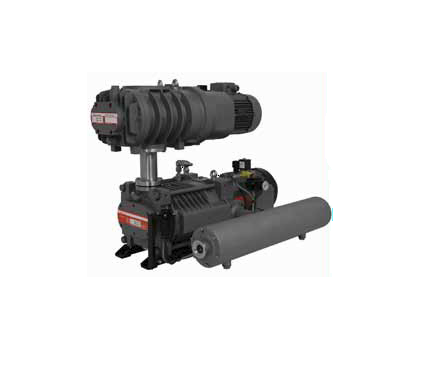

Drystar 80 SSP & Silencer
Activair.cz > Products > Vacuum pumps and vacuum stations > Dry vacuum pumps for industry > Drystar 80 Pumps > Drystar 80 SSP & Silencer
Features and Benefits
- Extended periods between user intervention to achieve maximum uptime
- No exhaust filters to service offering lower consumable cost and inventory
- Available in hydrocarbon or PFPE fluid (for oxygen) versions making it suitable for a wide range of applications and environments
- Continuous pumping from atmosphere
- Consistent performance in demanding applications
Applications
- Vacuum metallurgy processes
- Heat treatment carburisation
- Thin film coating technologies
- Pharmaceutical freeze drying
- Refrigeration and air conditioning system evacuation, drying, and backfilling
| Technical data | |
| Peak Pumping Speed 50 Hz | 80 m3h-1 (47 cfm) |
| Peak Pumping Speed 60 Hz | 94 m3h-1 (56 cfm) |
| Ultimate Pressure | <3x10-2 mbar (<2x10-2 Torr) |
| Power @ ultimate pressure | 3.6 kW (4.8 hp) |
| Power @ peak pumping load | 5.8 kW (7.8 hp) |
| Electrical supply | 200-230V 3Æ 50/60Hz or 380-460V 3Æ 50/60Hz |
| Inlet connection | ISO40 |
| Outlet connection | NW40 |
| Cooling method | Water |
| Cooling Water flow rate | 1 lmin-1 (0.26 galmin-1) |
| Max cooling Water supply pressure | 8 bar (116 psig) |
| Cooling Water DP across pump | 2.1 bar (30 psig) |
| Cooling Water temp | 5-35 °C (41-95 °F) |
| Cooling Water inlet | ½” Quick connect coupling |
| Cooling Water outlet | ½” Quick connect plug |
| Purge gas pressure | 0.5 bar (6-8 psig) |
| Purge gas light duty | 15 slm |
| Purge gas connection | ¼” Quick connect coupling |
| Weight | 145 kg (320 lbs) |
| Noise (with exhaust silencer) | |
| Exhaust back pressure | 1.3 bar (18 psig) |
| Lubrication volume | 0.4 l (0.1 gal) |
| Hydrocarbon lubrication | SHC629 |
| PFPE lubrication | YVAC 25/6 |
- Drystar 80 Pump and Booster packages Brochure (pdf, 1130KB)
