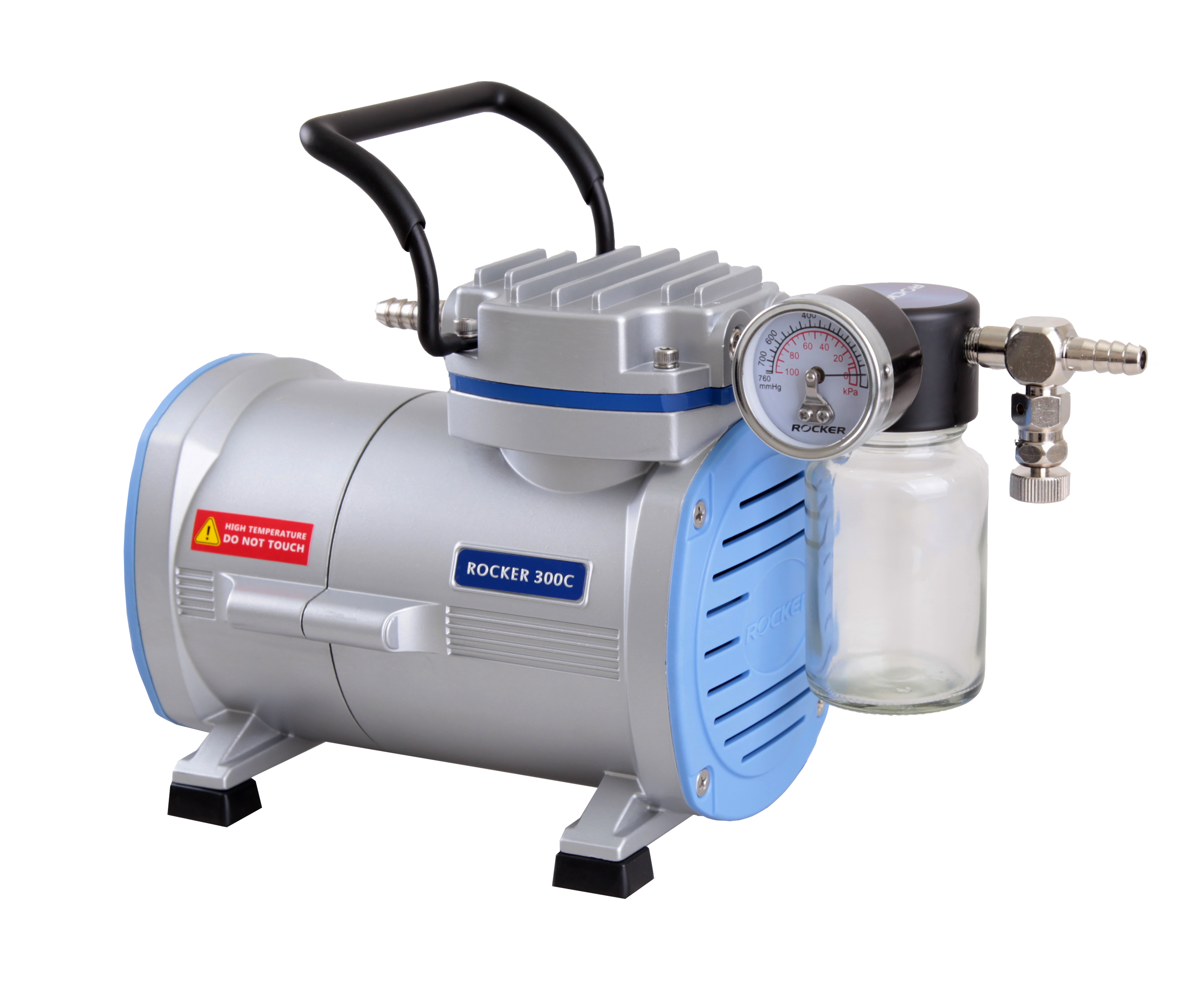

Rocker 300C

Rocker 300C vacuum pumps are driven by diaphragm, without the need of lubricant, regular oil changes and maintenance with no oil pollution. The diaphragm chamber of Rocker 300C coated with PTFE and the SS # 316 valve plate can offer good resistance to a wide range of corrosive gases.

Features

  • No air pollution, maintenance free
  • Good chemical resistance
  • Thermal protection device
  • International safety certification: CE certification, IP 30 protection, ROHS certification

Applications

  • Vacuum filtration
  • Solid-Phase Extraction (SPE)
  • Solvent purification

Specification (110V, 60Hz)

  • Max. power: 65W
  • Max. current: 0,7A
  • Max. vacuum: -630 mmHg
  • Max. flow rate: 23 l/min
  • Moisture trap: yes
  • Vacuum regulator: yes
  • Overflow protection: no
  • Motor rotation: 1750 RPM
  • Horse power: 1/8 HP
  • Noise level: 50.0 dB
  • Hose barb: 5/16 inch (8 mm)
  • Net weight: 4,1 kg
  • Dimension (L x W x H): 21,5 x 13,5 x 20,4 cm

Specification (220V, 50Hz)

  • Max. power: 60W
  • Max. current: 0,3A
  • Max. vacuum: -630 mmHg
  • Max. flow rate: 20 l/min
  • Moisture trap: yes
  • Vacuum regulator: yes
  • Overflow protection: no
  • Motor rotation: 1450 RPM
  • Horse power: 1/8 HP
  • Noise level: 50.0 dB
  • Hose barb: 5/16 inch (8 mm)
  • Net weight: 4,1 kg
  • Dimension (L x W x H): 21,5 x 13,5 x 20,4 cm
