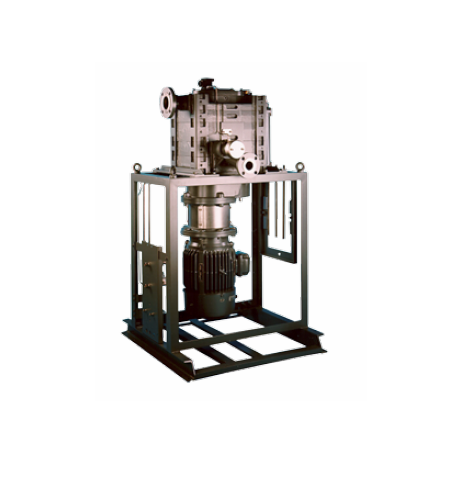

EDP80 - EDP Dry Pumps
EDP pumps are based on Edwards’ oil-free, non-contacting, award-winning, reverse claw mechanism. They provide consistent vacuum at high efficiencies and low costs of ownership. Dry pumps completely eliminate all problems of process contamination and creation of polluted effluent, which are experienced with traditional wet vacuum pump technologies.

Features and Benefits

  • Staged compression for optimum temperature profile within the pump and no requirement for cooling gas injection
  • Inherently free draining
  • Able to handle liquid or particulate carryover
  • Short gas path eliminates particulate build-up and corrosion - Edwards’ patented design
  • Can flush with solvents, water or steam
  • No internal valves to block or corrode and no interstage condensers to create potential for corrosion
  • Simple robust construction with ample power ensures reliable operation even during process upsets
  • Non-contacting mechanisms gives long life and high reliability
  • Pump flammable gases safely
  • Pump corrosive gases without corroding
  • Designed for long life and easy maintenance - Minimum of 25 years life expectancy
  • Lower cost of ownership

Applications

  • Drying
  • Distillation
  • Reactor service
  • Solvent recovery
  • House/Central vacuum
  • Evaporation
  • Polymerization
  • Ethylene oxide sterilization
  • Fatty acids and alcohols
  • Biofuels
  • Corrosive gases
  • Flammable gases
  • Pervaporation
  • Absorption/Desorption
  • Crystallization
  • Filtration
Technical data
Maximum pumping speed
50 Hz 83 m3h-1 / 49 ft3min-1
60 Hz 102 m3h-1 / 60 ft3min-1
Capacity at 10 mbar (7.5 Torr)
50 Hz 75 m3h-1 / 44 ft3min-1
60 Hz 102 m3h-1 / 60 ft3min-1
Ultimate vacuum
50 Hz 0.5 mbar / 0.4 Torr
60 Hz 0.3 mbar / 0.2 Torr
Maximum back pressure
Standard 1150 mbar / 2.2 psig
Optional 1300 mbar / 4.4 psig
Power consumption at 10 mbar (7.5 Torr)
50 Hz 3.3 kW / 4.4 hp
60 Hz 4.0 kW / 5.4 hp
Standard motor (380 – 400 V, 3 ph, 50 Hz) 5.5 kW
Standard motor (200 – 460 V, 3 ph, 60 Hz) 7.5 hp
Seal purge flow (maximum), regulated to 0.3 - 0.5 barg (5 – 7 psig)
Seal purge supply pressure
(minimum - maximum)		 2 – 10 barg / 29 – 145 psig
Noise (max. with exhaust silencer) 73 dB(A)
Weight (with frame and standard motor)
50 Hz 648 kg / 1429 lbs
60 Hz 650 kg / 1433 lbs
Inlet 2” ANSI / DN50
Outlet 1.5” ANSI / DN40
Pumping mechanism 3 stage reversed claw
