nXLi - nXLi

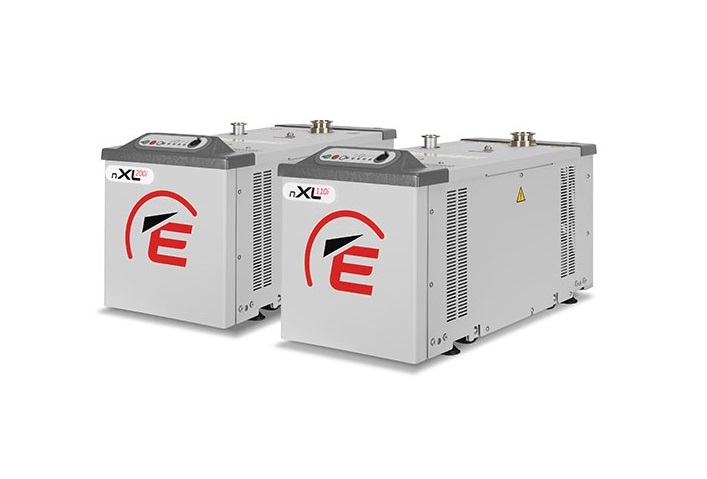

Air cooled nXLi dry pump range, designed to deliver a consistent performance worlwide with complete user flexibility in mind. This single phase pump is available in two options nXL110i and nXL200i.

Features and benefits

  • Air cooled single phase dry pump
  • Enhanced EMC variant
  • Intelligent drive transient overload protection
  • Flexibility of control
  • Compact and quiet
  • Oil free non contacting pump mechanism
  • Proven reliability

Applications

  • Scientific OEMs,
  • LCMS end users,
  • ICPMS end users,
  • Applications where a consistent performance, control and reliability are essential
  nXL110i nXL200i
Pumping speed (pneurop 6602) (m3h-1) 110 200
Ultimate vacuum (total pressure) (mbar) <2x10-2
Displacement (50/60 Hz) (m3h-1) 131 283
Inlet flange (alternative connections available upon request) NW40
Outlet flange (alternative connections available upon request) NW25
Maximum permitted outlet pressure (bar gauge/psig) 0,5 / 7,0
Operating temperature range (°C) 10 - 40
Nominal rotational speed (rpm) 9000
Power connector 1-ph IEC EN60320 C19
Power at ultimate (kW) 0,65
Power at typical application condition (2 - 10 mbar) (kW) 0,7 - 0,9
Flow at typical application condition (slm) 3-15 6-22
Max power during ramp up (kW) 1,1
Leak tightness (mbar ls-1) 1,0 x 10-5
Weight (kg) 75 81
Noise (pressure) dB(A) 56,7
Vibration at inlet flange (mms-1) (rms) <2,5
